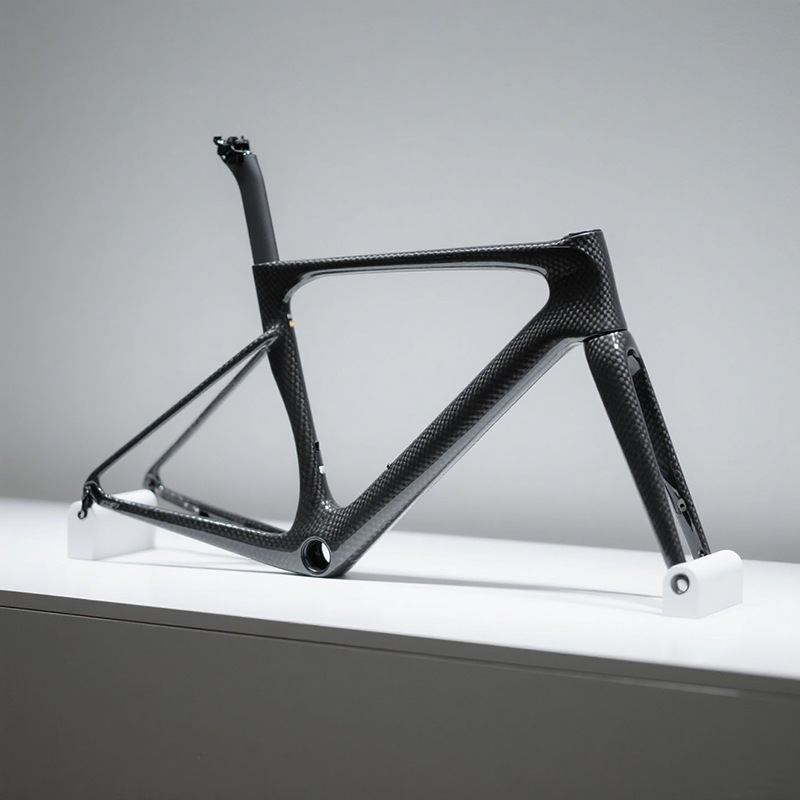

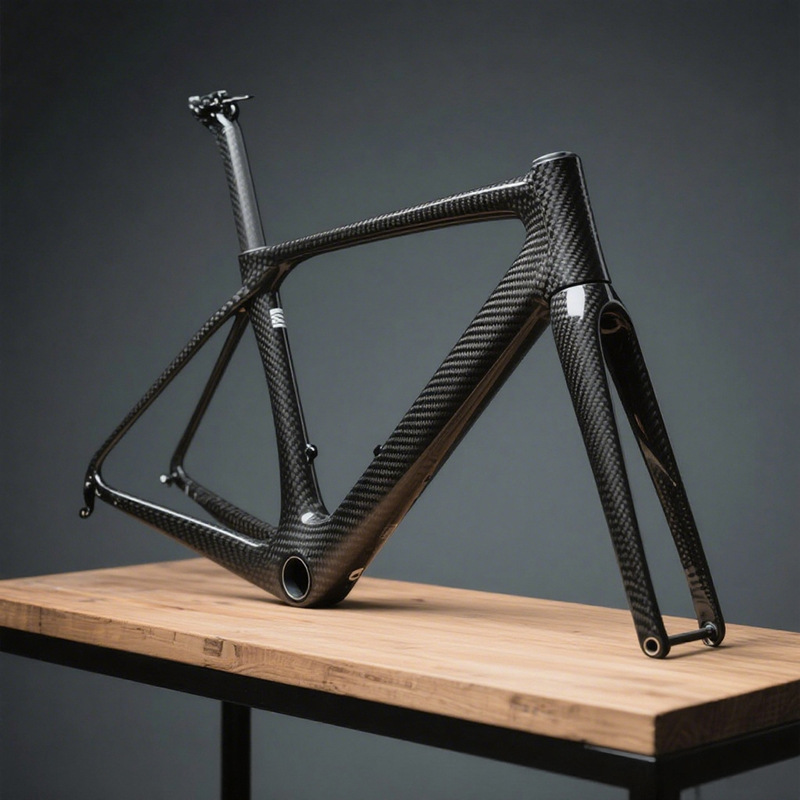

Custom Carbon Fiber Bike Frame Manufacturing represents the pinnacle of bicycle engineering, merging advanced materials with precise craftsmanship to create frames that are extensions of the rider. For brands, custom builders, and serious cyclists, this process delivers high-modulus, monocoque frames that are ultra-lightweight and perfectly tuned for road أو mountain biking. This guide details how an integrated manufacturer like Nylon Plastic turns visionary concepts into championship-caliber reality.
Why Choose Custom Carbon Fiber Bike Frame Manufacturing?
Moving beyond mass-produced options unlocks transformative advantages:
- Rider-Specific Geometry: Engineer frame angles and dimensions around exact biometric data for optimal power, comfort, and handling.
- Performance-Tuned Layups: Strategically place high-modulus carbon fiber to create zones of supreme stiffness for efficiency alongside compliant areas for vibration damping.
- Optimal Weight Savings: Remove unnecessary material by designing to calculated load paths, achieving the best possible strength-to-weight ratio.
- Integrated Feature Design: Incorporate proprietary aerodynamic shapes, internal cable routing, and component mounts directly into the one-piece monocoque structure.
Application Scenarios: Matching the Frame to the Ride
Custom Carbon Fiber Bike Frame Manufacturing excels because it tailors the product to its exact purpose. Different disciplines demand unique performance profiles.
| Use Case | Primary Performance Demands | Ideal Carbon Fiber Solution | Frame Design Focus |
|---|---|---|---|
| Road Racing | Minimum weight, maximum stiffness, low aerodynamic drag | Ultra-high-modulus, high-strength fibers | Aero tube shapes, extreme lightweighting, high bottom bracket stiffness |
| Road Endurance/Gran Fondo | Comfort, balanced stiffness, stability, vibration damping | Standard/intermediate modulus fibers, hybrid layups | Smoother ride quality, targeted compliance, wider tire clearance |
| Mountain Bike (XC) | Light weight, pedaling efficiency, precise handling, durability | Blend of high and standard modulus fibers | Balance of weight and strength, optimized rear triangle stiffness |
| Mountain Bike (Enduro/All-Mountain) | High strength, impact resistance, stability, controlled compliance | High-toughness fibers, reinforced critical zones | Reinforced downchain/chainstays, robust rear triangle, downhill stability |
| Mountain Bike (Downhill) | Extreme strength, maximum impact resistance, stability | Highest toughness fibers, multiple reinforcements, thicker ply | Ultra-robust tube design, comprehensive protection, long/low geometry |
التحليل: The core of Custom Carbon Fiber Bike Frame Manufacturing is “right material, right place.” A race bike maximizes high-modulus carbon for stiffness, while an endurance frame uses specific ply angles for comfort. Our engineers collaborate with you from the start to ensure every gram serves a functional purpose for your target scenario.
Material Comparison: Why Carbon Fiber Reigns Supreme
The foundation of performance is material selection. This comparison highlights why carbon fiber is the elite choice for custom carbon fiber bike frame manufacturing.
| المواد | Stiffness-to-Weight Ratio | Impact Resistance / Durability | Design Freedom | Relative Cost |
|---|---|---|---|---|
| High-Modulus Carbon Fiber | 10 / 10 | High (Excellent when engineered correctly) | 10 / 10 (Unlimited complexity) | عالية |
| Standard Carbon Fiber | 8 / 10 | جيد | 9 / 10 | متوسط-عالي |
| Aluminum Alloy | 5 / 10 | Moderate (Prone to fatigue) | 6 / 10 (Limited by tubing) | متوسط |
| تيتانيوم | 7 / 10 | Exceptional (Excellent fatigue life) | 7 / 10 (Welding constraints) | عالية جداً |
التحليل: While titanium offers legendary durability, high-modulus carbon fiber provides an unbeatable blend of lightness and stiffness, critical for competitive cycling. Its superior moldability enables aerodynamic and structural innovations impossible with metals.
The Integrated Manufacturing Process: From Concept to Carbon
Our “Concept to Carbon” workflow at Nylon Plastic ensures meticulous control, quality, and efficiency at every stage of your custom carbon fiber bike frame manufacturing project.
| المرحلة | Nylon Plastic Core Activities | Your Benefit & Outcome |
|---|---|---|
| 1. Collaborative Design & Simulation | – 3D CAD Modeling – FEA for Stress & Stiffness - التصميم من أجل قابلية التصنيع (DFM) Analysis | A production-ready design optimized for performance, weight, and cost. Early risk mitigation. |
| 2. Precision Mold Engineering | – CNC Machining of High-Grade Mold Cores – Surface Finishing for Aero/Finish Quality | A perfect tool defining your frame’s final shape and premium surface finish. |
| 3. Material Science & Layup Planning | - Carbon Fiber Prepreg Selection – Detailed Ply Book Creation - Leverage our expertise in composites like PA6-CF materials. | A material strategy tailored for your specific performance goals (e.g., sprint stiffness vs. endurance comfort). |
| 4. Prototyping & Validation | - Rapid 3D Printing of Critical Sections – Functional Prototype Testing | Physical validation of fit, assembly, and handling before mold production, accelerating development. |
| 5. Curing & Final Artistry | – Autoclave/Oven Curing – Precision Trimming, Sanding, Painting | A structurally sound, visually flawless, ready-to-ride custom carbon bike frame. |
FAQ: Custom Carbon Fiber Bike Frame Manufacturing
Q1: What is the typical cost for a custom carbon frame project?
A: Cost varies with design complexity, carbon fiber grade, mold intricacy, and order quantity. While a one-off prototype is an investment, unit costs drop significantly with small-batch production (e.g., 10-50 units). We provide transparent quotes after the initial design review.
Q2: How light can a custom carbon frame be?
A: بالنسبة لـ high-modulus road bike frames, weights under 800g for a size 56cm are achievable. Mountain bike frames (full-suspension) can target sub-2kg weights. We optimize the strength-to-weight ratio for your specific use case.
Q3: Do you handle both road and mountain bike frames?
A: نعم. لدينا custom carbon fiber bike frame manufacturing process is adaptable. We tailor the design, layup, and testing protocols to the distinct needs of road (aero/weight) and mountain (impact/stiffness) bikes.
Q4: What is your Minimum Order Quantity (MOQ)?
A: We are flexible. We support projects ranging from single prototypes and small batches (for custom builders or market testing) to full-scale production runs.
Q5: What is the typical project timeline?
A: For a new design, allow 12-16 weeks for the first prototype, including design, mold making, and sampling. Batch production cycles are faster. Our 3-day rapid prototyping service accelerates early design phases.
Q6: How do you ensure quality?
A: Quality is integral, backed by ISO 9001 and IATF 16949 certifications. We employ strict process controls, from material inspection to final CMM measurement. Every batch undergoes rigorous mechanical and visual inspection.
Conclusion: Engineer Your Advantage
Custom Carbon Fiber Bike Frame Manufacturing is the definitive choice for achieving peak performance and distinct brand identity. It requires a partner with comprehensive engineering, material science, and manufacturing expertise.
Ready to build the benchmark for your next generation of bikes? Contact Nylon Plastic today for a technical consultation. Let’s discuss how our end-to-end custom carbon fiber bike frame manufacturing capabilities can bring your most innovative, lightweight, and high-performance frame concept to life.
