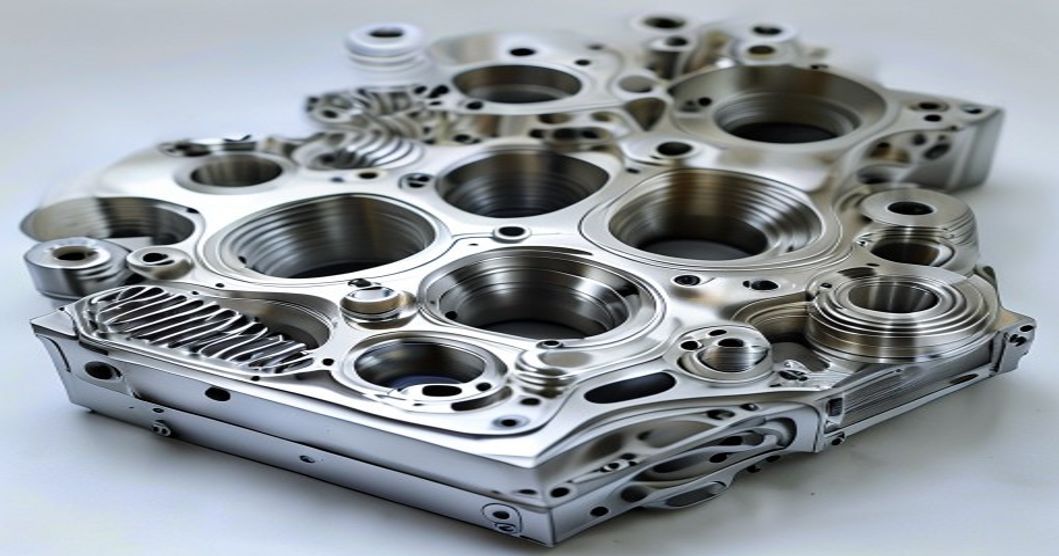

5-axis machining represents the pinnacle of CNC manufacturing capability, enabling the production of complex plastic components that would be impossible or prohibitively expensive with traditional 3-axis methods.
What is 5-Axis Machining?
Unlike 3-axis machines that move along X, Y, and Z axes, 5-axis machines add two rotational axes (typically A and B or A and C). This allows the cutting tool to approach the workpiece from virtually any angle, enabling:
- Undercut features — machine areas inaccessible to 3-axis tools
- Complex curves — turbine blades, impellers, organic shapes
- Multi-sided parts — complete machining in a single setup
- Improved accuracy — no re-fixturing between operations
Applications for 5-Axis Machined Plastics
High-performance engineering plastics machined on 5-axis equipment serve demanding applications:
- Ruimtevaart — ducting, brackets, interior components
- Medisch — surgical instrument handles, implant trials, diagnostic equipment
- Automotive — fluid system components, sensor housings
- Robotica — custom end effectors, cable management systems
Material Considerations
PEEK en carbon fiber reinforced nylon are popular choices for 5-axis machined components due to their:
- Hoge sterkte-gewichtsverhouding
- Excellent thermal stability
- Chemical resistance
- Ability to replace metal components
Why Choose Our 5-Axis Machining Services
5-axis machining delivers complex geometries that 3-axis machines simply cannot achieve. Our advanced 5-axis centers offer maximum precision and efficiency:
- True 5-axis simultaneous machining — reduces setup operations and achieves complex contoured surfaces in a single clamping
- ±0.005mm tolerance — precision control across all axes for aerospace and medical-grade parts
- Large worktable capacity — up to 3000mm × 2000mm for oversized components
- Single-piece to mass production — MOQ 1 piece with no mold costs
- Fast turnaround — prototypes within 24 hours, small batches in 3–5 working days
5-axis machining significantly reduces lead times for complex plastic components by eliminating multiple setups. Our engineers optimize tool paths to minimize cycle time while maintaining precision.
Have a complex part that needs 5-axis machining? Upload your design files and get a quote today.
FAQ
When is 5-Axis Machining: Complex Geometry Solutions for High-Performance Plastics a good option?
5-Axis Machining: Complex Geometry Solutions for High-Performance Plastics is a good option when fast iteration, complex geometry, low tooling cost, or low-volume production is more important than molded-part unit cost.
What should be checked before choosing 5-Axis Machining: Complex Geometry Solutions for High-Performance Plastics?
Controleer de onderdeelgrootte, materiaaleigenschappen, oppervlakteafwerking, maattolerantie, blootstelling aan hitte, belastingsrichting en of nabewerking nodig is.
How does 5-Axis Machining: Complex Geometry Solutions for High-Performance Plastics compare with CNC machining?
Met 3D-printen kunnen complexe vormen snel worden gemaakt, terwijl CNC-bewerking vaak sterker is voor precieze oppervlakken, nauwere toleranties en productiematerialen.
What affects the cost of 5-Axis Machining: Complex Geometry Solutions for High-Performance Plastics?
De kosten zijn afhankelijk van het materiaal, het bouwvolume, de printtijd, de laaghoogte, het verwijderen van de ondersteuning, de afwerking, de inspectie en het aantal onderdelen in de bouw.
