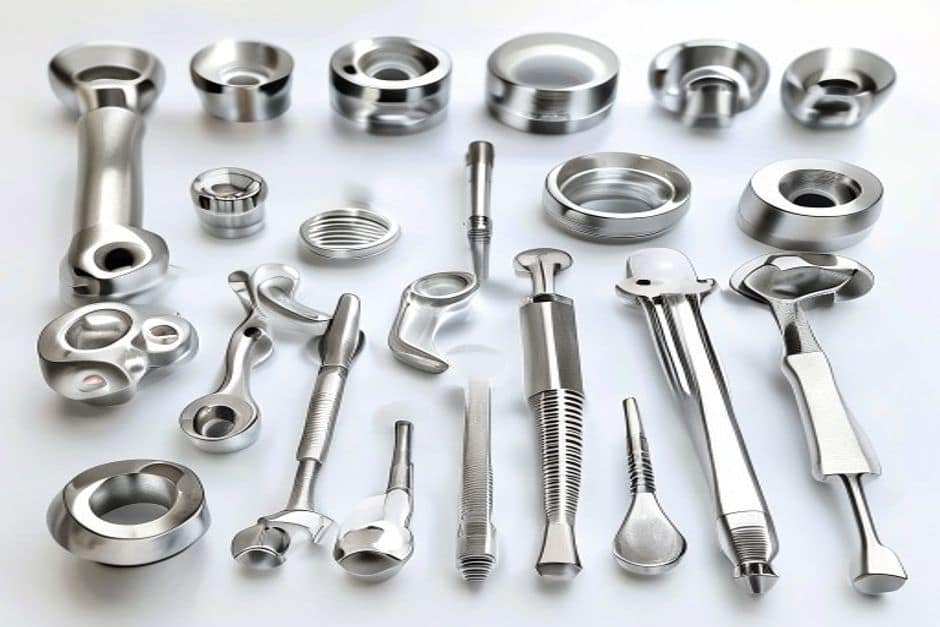

CNC machining is a cornerstone manufacturing process in the medical device industry. From surgical instruments and implantable devices to diagnostic equipment components and drug delivery systems, CNC-machined parts must meet the industry’s most stringent requirements for precision, biocompatibility, cleanliness, and regulatory traceability.
Why CNC Machining for Medical Devices?
Medical device manufacturing has unique requirements that align exceptionally well with CNC machining capabilities:
- Tight Tolerances: Implantable devices and surgical instruments routinely require ±0.0005 to ±0.0001 inch tolerances
- Biocompatible Materials: CNC machining handles medical-grade metals (Ti-6Al-4V, 316L SS, CoCr) and plastics (PEEK, PEI, medical-grade POM) without contaminating the material
- Finition de la surface: Implant surfaces must be free of microscopical defects that could harbor bacteria or cause tissue irritation — CNC-machined surfaces can achieve 8-16 Ra with proper tooling and strategy
- Traceability: Each machined batch can be linked to specific material lots, machine parameters, and inspection records — essential for FDA compliance
- Low-to-Mid Volume: Many medical devices are produced in quantities of 100-10,000 annually — ideal for CNC machining rather than injection molding
Key Medical Device Applications
1. Orthopedic Implants
- Bone Screws and Plates: Titanium alloy (Ti-6Al-4V) machined with thread tolerances of ±0.0002 inches
- Joint Replacement Components: Femoral heads, acetabular cups, tibial trays — cobalt-chrome or titanium, with highly polished bearing surfaces
- Spinal Implants: Cages, rods, and screws requiring complex geometries and biocompatible surface finishes
2. Surgical Instruments
- Scalpel Handles, Forceps, Retractors: Stainless steel (316L, 420) with electropolished surfaces
- Drill Guides and Templates: PEEK or medical-grade POM with patient-specific geometries from CT/MRI data
- Minimally Invasive Surgery (MIS) Tools: Long, slender components with complex pivot mechanisms
3. Diagnostic and Imaging Equipment
- CT and MRI Components: Non-ferrous materials (aluminum, brass, PEEK) to avoid imaging artifacts
- Sample Handling: Autoclavable plastic components (PEEK, PEI) for reagent handling and sample processing
- Microfluidic Devices: Channels as small as 0.005 inches machined into biocompatible polymers
Materials for Medical CNC Machining
| Matériau | Application | Machining Considerations |
|---|---|---|
| Ti-6Al-4V (Grade 5) | Implants, surgical instruments | Low thermal conductivity; use coolant, sharp tools |
| 316L Stainless Steel | Instruments, housings | Work-hardens; positive rake angles |
| PEEK (medical grade) | Spinal cages, bone replacement | Excellent machinability; use coolant |
| CoCr (Cobalt Chrome) | Joint replacements | Very hard; use ceramic or CBN tools |
Regulatory Compliance: ISO 13485 and FDA Requirements
Medical device machining suppliers must comply with:
- ISO 13485:2016: Quality management systems for medical devices — more stringent than ISO 9001, with additional requirements for risk management, design control, and traceability
- FDA 21 CFR Part 820: Quality System Regulation for US market — design controls, document controls, corrective/preventive action (CAPA)
- Certifications matérielles: USP Class VI, ISO 10993 biocompatibility documentation for materials in patient contact
- Cleanroom Machining: For implantable devices, secondary operations (polishing, cleaning, packaging) must occur in certified cleanroom environments
Articles connexes
Explore our complete guide to engineering plastics and precision manufacturing. For material-specific guidance, review our technical articles on CNC processes, tooling, and manufacturing optimization.
Questions fréquemment posées
What are the main advantages of this manufacturing process?
Precision, repeatability, and material flexibility are the primary advantages. Modern CNC processes achieve tolerances of ±0.001 inches and produce identical parts across production runs. Material selection is virtually unlimited, and design changes require only reprogramming rather than new tooling.
How do I choose between different manufacturing methods?
Consider production volume, tolerances, material properties, and lead time. CNC machining excels at low-to-mid volumes and design flexibility. Injection molding dominates high-volume production. EDM processes address hard materials and complex internal geometries. Water jet cutting provides cold-cutting for sensitive materials.
What quality standards should I require from suppliers?
Require ISO 9001:2015 certification as a baseline. For aerospace, AS9100; for medical, ISO 13485; for automotive, IATF 16949. Request sample inspection reports, CMM capabilities documentation, and material certifications with every production batch.
How can I reduce manufacturing costs without sacrificing quality?
Optimize designs for machinability: increase tolerances where functionally acceptable, use standard tool sizes, minimize setups by designing features accessible from one orientation, and consider whether CNC or molding is more cost-effective at your volume.
