Laser cutting and CNC machining are two of the most widely used precision manufacturing processes, yet they operate on fundamentally different principles. Laser cutting is a thermal, non-contact process that uses a focused beam of light to melt, vaporize, or burn material along a programmed path. CNC machining is a mechanical, contact process that uses rotating cutting tools to remove material. Understanding when to use each process — or how to combine them — is essential for manufacturing engineers and procurement professionals.

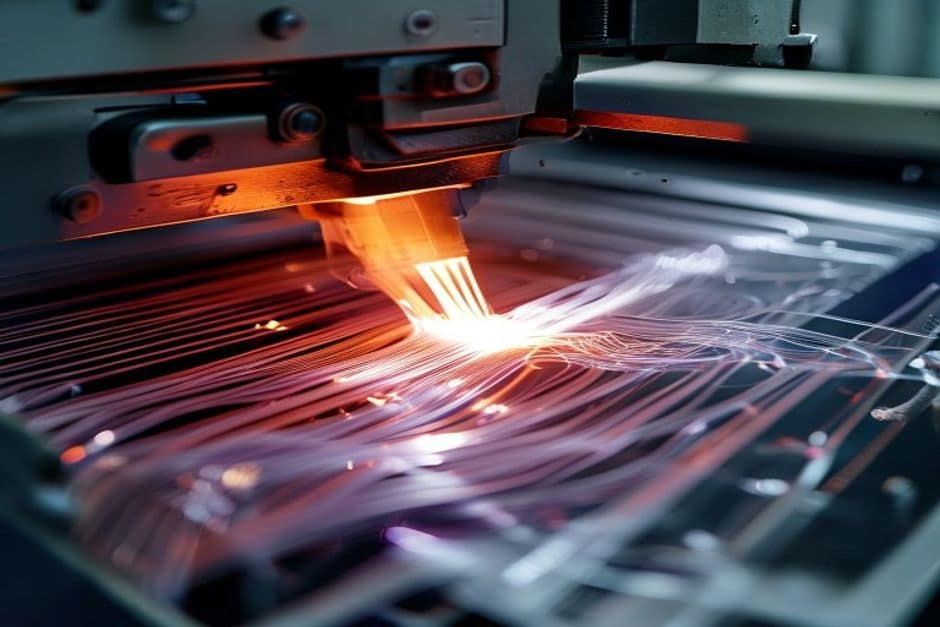

Laser Cutting: How It Works
Laser cutting systems focus a high-power laser beam (CO2, fiber, or Nd:YAG) through optics and mirrors to a focal point 50-200 microns in diameter. The concentrated energy density — often exceeding 10 million watts per square centimeter — rapidly heats the material to its melting or vaporization point. A coaxial assist gas (oxygen, nitrogen, or compressed air) blows the molten material through the cut, creating a smooth kerf.
Laser Cutting Types
- CO2 Laser (10.6 µm wavelength): Best for non-metals — wood, acrylic, plastics, fabric, rubber. Also cuts thin metals but requires higher power. Widely used in fabrication shops and sign-making.
- Fiber Laser (1.06 µm wavelength): Superior for metal cutting — steel, aluminum, brass, copper. Higher wall-plug efficiency than CO2 (30% vs. 10%). Faster cutting in thin-to-medium metals. No mirrors to align; lower maintenance.
- Nd:YAG Laser: Used primarily for welding, marking, and specialized micromachining applications.
Head-to-Head Comparison
| Factor | Découpe au laser | Usinage CNC |
|---|---|---|
| Process Type | Thermal (non-contact) | Mechanical (contact) |
| Material Capability | 2D profiling primarily | Full 3D material removal |
| Materials (Metals) | Up to 1 inch (steel), 0.5 inch (aluminum) | Unlimited thickness (multiple passes) |
| Materials (Plastics) | Cuttable but may discolor or melt | Excellent — clean cuts, no thermal effect |
| Tolerances | ±0.003-0.010 inches | ±0.0005-0.002 inches |
| Kerf Width | 0.004-0.020 inches | Tool diameter (0.031+) |
| Heat-Affected Zone | Present — 0.004-0.020 inches | Minimal (frictional heating only) |
| Operating Cost | Low (minimal consumables) | Moderate (tooling, coolant) |
Material-Specific Considerations
Metals
Laser cutting is the preferred process for thin-to-medium sheet metal profiling (0.020-1.0 inch steel, 0.020-0.5 inch aluminum). It is typically faster than CNC machining for 2D part profiles and produces less material waste. However, laser-cut edges have a heat-affected zone (HAZ) that may require post-processing for fatigue-critical aerospace or medical components.
Plastics
CNC machining is strongly preferred for engineering plastics. Laser cutting produces thermal effects in plastics — melting, discoloration, toxic fumes, and dimensional distortion — that CNC machining completely avoids. Materials like Nylon, POM (acetal), PEEK, and polycarbonate machine cleanly with appropriate feeds and speeds. For engineering plastic components requiring 3D features or tight tolerances, CNC machining is the clear choice.
Wood and Composites
Laser cutting excels for wood, plywood, and MDF — materials that would dull CNC cutting tools. The laser produces clean, dark edges with no tool marks. For carbon fiber composites, both processes can work: fiber lasers cut without delamination common in mechanical routing, but CNC routing is preferred for thick laminates (over 0.25 inches).
Choosing Between Laser Cutting and CNC Machining
- Choose Laser Cutting for: 2D sheet metal profiles, enclosures and panels, thin material with complex contours, non-metal materials (wood, acrylic, fabric), high-volume sheet metal production where speed dominates
- Choose CNC Machining for: 3D parts with pockets, holes, and stepped profiles, plastic components (no thermal degradation), tight-tolerance metallic or plastic parts (±0.001 inch), thick materials (over 1 inch in metal), threaded holes and reamed bores
- Consider Both Together: Laser cut the 2D profile from sheet stock, then CNC machine the 3D features in a subsequent operation
Articles connexes
Explore our complete guide to engineering plastics and precision manufacturing. For detailed technical guidance, review our articles on CNC machining processes, material selection, and manufacturing optimization.
Questions fréquemment posées
What determines the best manufacturing process for my project?
The optimal process depends on production volume, material, tolerances, geometry complexity, and budget. Low-volume precision parts suit CNC machining. High-volume identical parts favor injection molding. Hardened materials with sharp corners benefit from EDM. Cold-cutting requirements point to water jet.
How important is material selection in the manufacturing outcome?
Material choice is arguably the most important decision. It determines cutting parameters, tool selection, achievable tolerances, surface finish, and ultimately part performance. Engineering plastics like Nylon and POM behave very differently from metals — requiring specific feeds, speeds, and cooling strategies.
What certifications should I look for when choosing a manufacturer?
ISO 9001:2015 is the baseline. Industry-specific certifications include AS9100 (aerospace), ISO 13485 (medical), IATF 16949 (automotive), and NADCAP (special processes). Verify the certification scope covers your specific component type.
How can I reduce manufacturing costs?
Optimize designs for manufacturability: relax tolerances where functionally acceptable, minimize setups by designing features accessible from one orientation, use standard tool sizes, and order larger quantities to amortize setup time. Early supplier engagement during the design phase is the most effective cost-reduction strategy.
