What is Insert Molding?

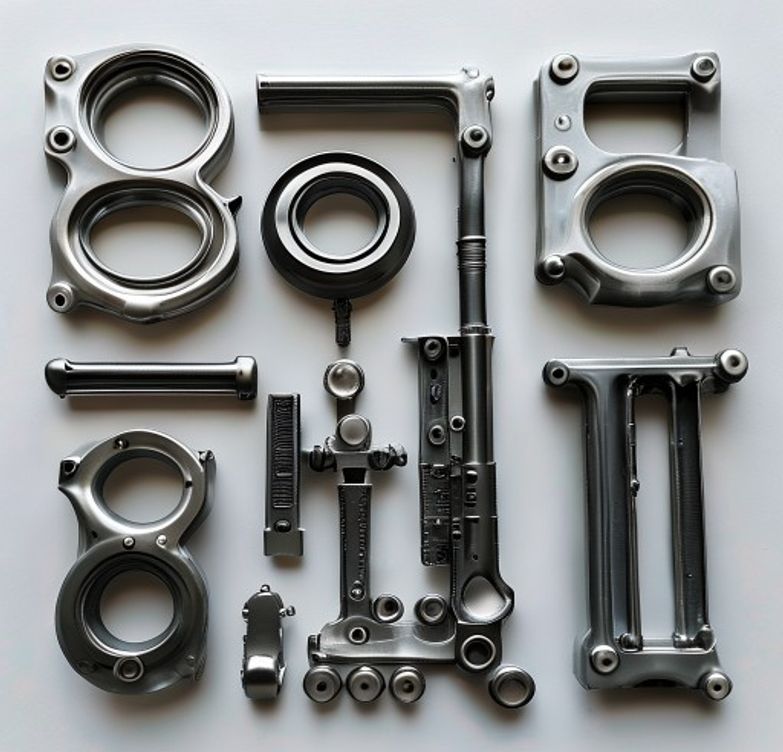

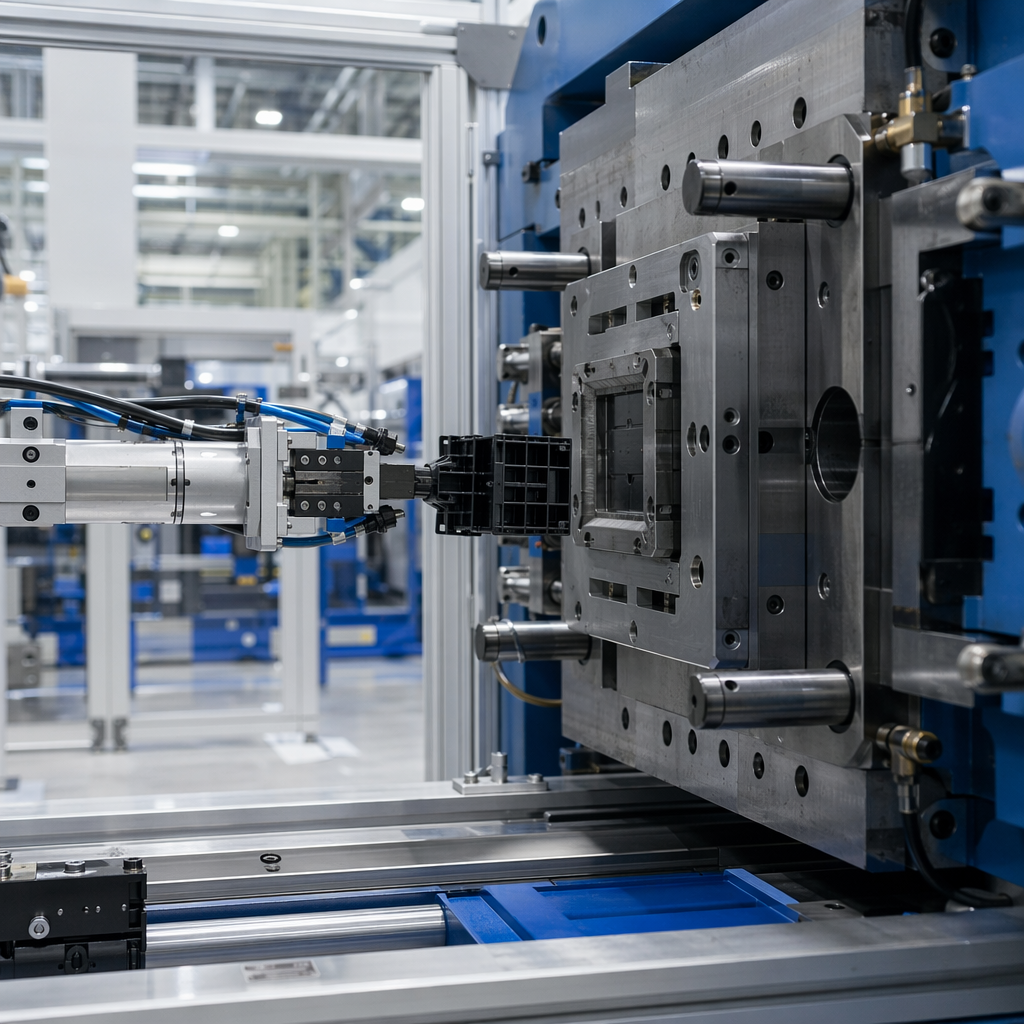

Insert molding process with metal inserts placed in mold cavity

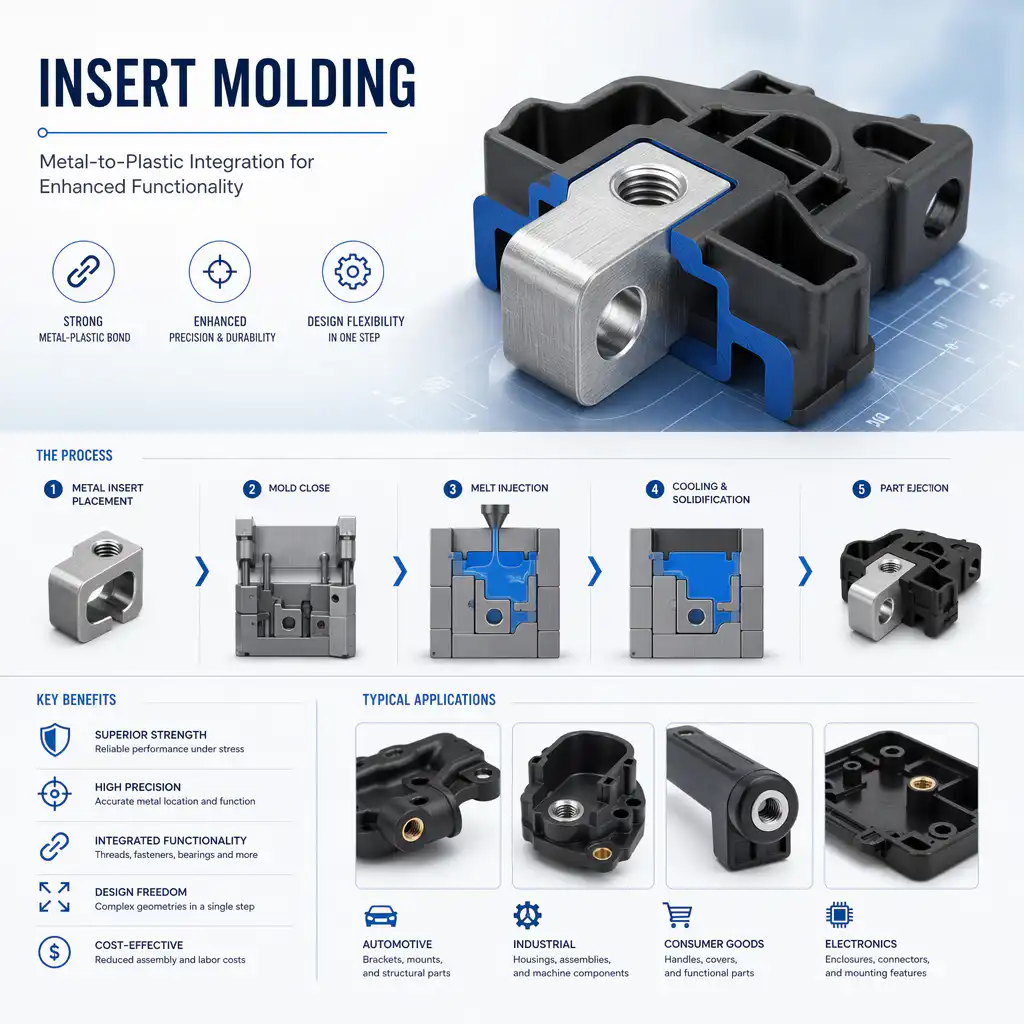

Insert molding is a process where pre-formed components (typically metal inserts) are placed into a mold before injection. The molten plastic surrounds the insert, creating a single integrated part.

일반적인 애플리케이션

Electrical connectors: Metal terminals encapsulated in plastic housings
Threaded inserts: Metal nuts and bolts molded into plastic parts
Medical devices: Metal components in disposable surgical tools
자동차: Electrical connectors, sensor housings
Consumer products: Knobs, handles with metal reinforcement

Types of Inserts

Threaded Inserts

Helical coil inserts
Ultrasonic inserts (post-molded)
Molded-in threaded inserts

Electrical Contacts

Pin connectors
Socket contacts
Terminal blocks

Structural Components

Metal brackets
Reinforcement plates
Bushings and bearings

Design Guidelines

Process Considerations

Insert Loading

Manual: Operator places inserts — lower cost, flexible
Automated: Robot or feeder — higher consistency, faster cycle

Insert Temperature

Pre-heating inserts improves bonding
Reduces thermal shock and stress
Typical pre-heat: 80-120°C depending on material

Holding and Positioning

Inserts must be held firmly during injection
Pressure can displace loosely held inserts
Design proper retention features

Quality Considerations

Verify insert position after molding
Check for plastic flash on insert surfaces
Test pull-out strength for threaded inserts
Inspect for cracking around inserts

Advantages of Insert Molding

Eliminates secondary assembly operations
Creates permanent metal-to-plastic bond
Improves part strength and durability
Enables complex multi-material functionality
Reduces total part count and assembly cost

결론

Insert molding combines the benefits of metal and plastic in a single integrated component. Proper design of inserts, mold, and process ensures reliable, high-quality results.

자주 묻는 질문

When does Insert Molding — Metal-to-Plastic Integration for Enhanced Functionality make sense?

Insert Molding — Metal-to-Plastic Integration for Enhanced Functionality makes sense when the part volume, material choice, geometry, and repeatability needs justify mold design and tooling investment.

What design factors matter most for Insert Molding — Metal-to-Plastic Integration for Enhanced Functionality?

Wall thickness, ribs, bosses, draft angle, gate location, shrinkage, parting line, and ejection all affect molded part quality.

What information is needed before mold production?

The supplier should confirm the 3D model, material, expected annual volume, appearance requirements, tolerance needs, and any assembly or functional testing requirements.

What is the biggest risk in Insert Molding — Metal-to-Plastic Integration for Enhanced Functionality?

The biggest risk is approving tooling before material behavior, shrinkage, flow, and part function are fully checked against the real application.
