Multi-Material Molding Overview

Multi-material molding combines different materials in a single part to achieve functional or aesthetic benefits. Two-shot molding and overmolding are the primary techniques, each with distinct advantages.

Two-Shot Molding

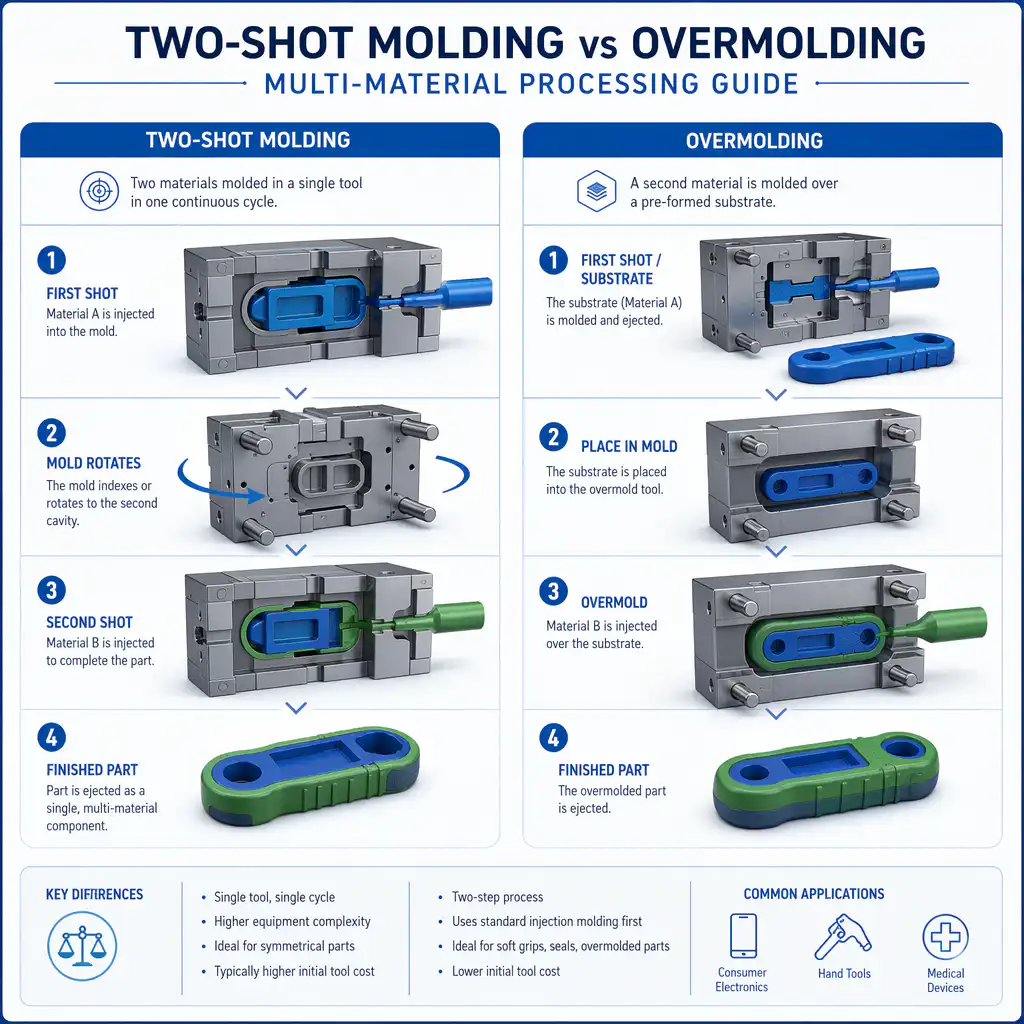

Two-shot molding (also called 2K molding or multi-component molding) injects two different materials in a single molding cycle using a specialized machine with two injection units.

프로세스 설명

1. First material injected into mold cavity
2. Mold rotates or transfers to second position
3. Second material injected over or alongside first
4. Part ejected as complete unit

Advantages

• Excellent material bonding (chemical bond possible)
• High precision and repeatability
• Single cycle production
• Design flexibility for complex geometries
• Reduced labor and handling

Disadvantages

• Higher machine and tooling cost
• Requires specialized equipment
• Less flexibility for design changes
• Longer tooling lead time

Overmolding

Overmolding uses two separate molding cycles. A substrate part is molded first, then placed in a second mold where additional material is injected over it.

프로세스 설명

1. Substrate molded in first mold
2. Substrate placed in second mold
3. Second material injected over substrate
4. Completed part ejected

Advantages

• Lower equipment cost
• Can use standard injection machines
• More design flexibility
• Easier to change colors/materials
• Suitable for lower volumes

Disadvantages

• Requires two molding cycles
• Additional handling and labor
• Bond quality depends on mechanical interlock
• Higher per-part cost at high volumes

Material Compatibility

애플리케이션

Two-Shot Molding:

• Automotive interior components
• Medical devices with soft grips
• Consumer electronics buttons and keys
• Sealed enclosures with gaskets

Overmolding:

• Tool handles and grips
• Encapsulated electronics
• Cable connectors
• Product branding and logos

Decision Factors

• Volume: High volume favors two-shot; low volume favors overmolding
• Bond requirements: Chemical bond needs two-shot
• Budget: Overmolding has lower upfront costs
• 장비: Two-shot requires specialized machines

결론

Both techniques produce multi-material parts successfully. Evaluate production volume, bond requirements, and available equipment to determine the best approach.
