PA6 GF40 Technical Specifications (Estimated)
| Property | Value | Test Standard |
|---|---|---|
| Glass Fiber Content | 40% (±2%) | ISO 1172 |
| Tensile Strength | 145 – 200 MPa | ISO 527 |
| Flexural Modulus | 7,500 – 11,000 MPa | ISO 178 |
| Impact Strength (Notched Izod) | 9 – 14 kJ/m² | ISO 180 |
| Heat Deflection Temperature (HDT) | 190 – 215 °C @ 1.8 MPa | ISO 75 |
| Melting Point | 215 – 230 °C | ISO 3146 |
| Moisture Absorption (Equilibrium, 23°C/50% RH) | ~1.5% | ISO 62 |
PA6 Series Material Performance Comparison Table:
| Property | PA6 GF15 | PA6 GF30 | PA6 GF40 | PA6 GF50 | PA6 GF60 |
|---|---|---|---|---|---|
| Glass Fiber Content | 15% | 30% | 40% | 50% | 60% |
| Density (g/cm³) | 1.21 | 1.38 | 1.46 | 1.56 | 1.67 |
| Tensile Strength (MPa) | 118 | 165 | 185 | 200 | 220 |
| Elongation at Break (%) | 3.3 | 3.0 | 2.8 | 2.0 | 2.0 |
| Notched Impact Strength (kJ/m²) | 10 | 12 | 13 | 14 | 14 |
| Heat Deflection Temperature (℃, 1.8MPa) | 160 | 175 | 215 | 216 | 220 |
Key Advantages：
Excellent Strength-to-Weight Ratio
Excellent Strength-to-Weight RatioPA6 GF40 offers superior mechanical properties, including very high tensile strength and flexural modulus, making it suitable for structural components that must withstand heavy loads and high stresses.
Outstanding Thermal Resistance
With a Heat Deflection Temperature (HDT) that can exceed 215°C, PA6 GF40 maintains excellent dimensional stability and mechanical integrity in demanding high-temperature applications.
Superior Dimensional Stability
The high glass fiber content significantly reduces moisture absorption and minimizes thermal expansion, ensuring parts maintain their precise shape and tight tolerances in varied environments.
Good Chemical and Wear Resistance
It exhibits good resistance to oils, fuels, and many chemicals, while the high fiber content also contributes to improved wear resistance, suitable for demanding mechanical and industrial uses.
Industry Applications:
PA6GF40 is commonly used in automotive components, interior parts, and other applications that require a good surface finish and fundamental rigidity.
Powering Innovation Across Industries
| Industry | Key Applications |
|---|---|

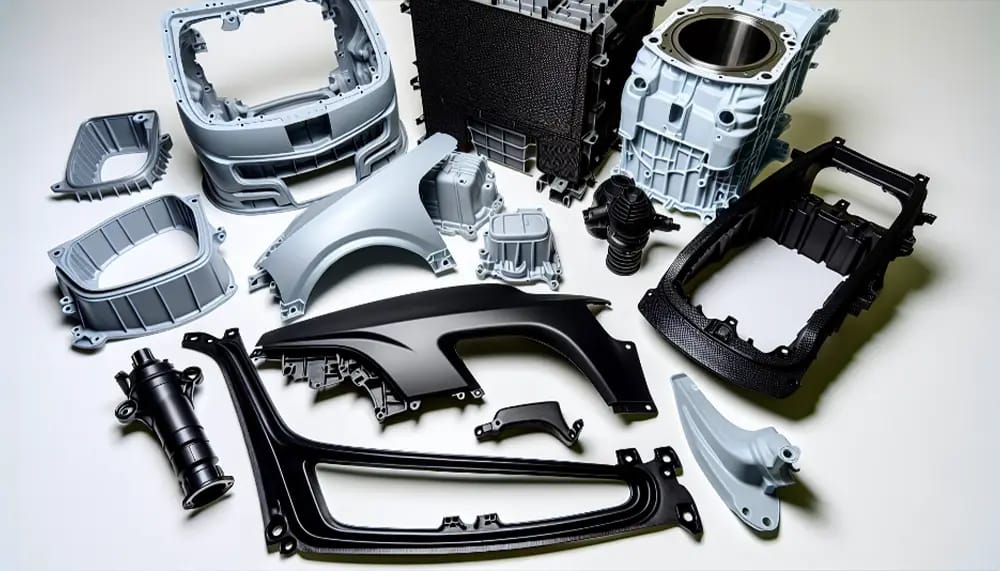

| Automotive | Engine covers, intake manifolds, structural brackets, sensor housings, connectors. Explore Automotive Applications → |
| Electrical & Electronics | Circuit breakers, switches, connector housings, insulating components. Discover E&E Solutions → |
| Industrial Equipment | Gears, bearings, machine housings, rollers, mechanical components. See Industrial Uses → |
How to Choose?
In simple terms:
-
For good toughness or cost-effectiveness, consider PA6 GF15.
-
For balanced overall performance, choose PA6 GF30.
-
For higher stiffness, strength, and heat resistance, and where cost is less sensitive, consider PA6 GF40/50/60. Generally, higher glass fiber content improves these properties.
Why Choose Us?
FAQ Section:
Q: Can I get a sample before placing an order?
A: Yes! We provide free samples for qualified projects.
Q: What’s the lead time for production?
A: Standard grades: 5-7 days; Custom formulations: 2-3 weeks.
Q: Do you provide material certifications?
A: Yes, we provide full material documentation and certifications.
