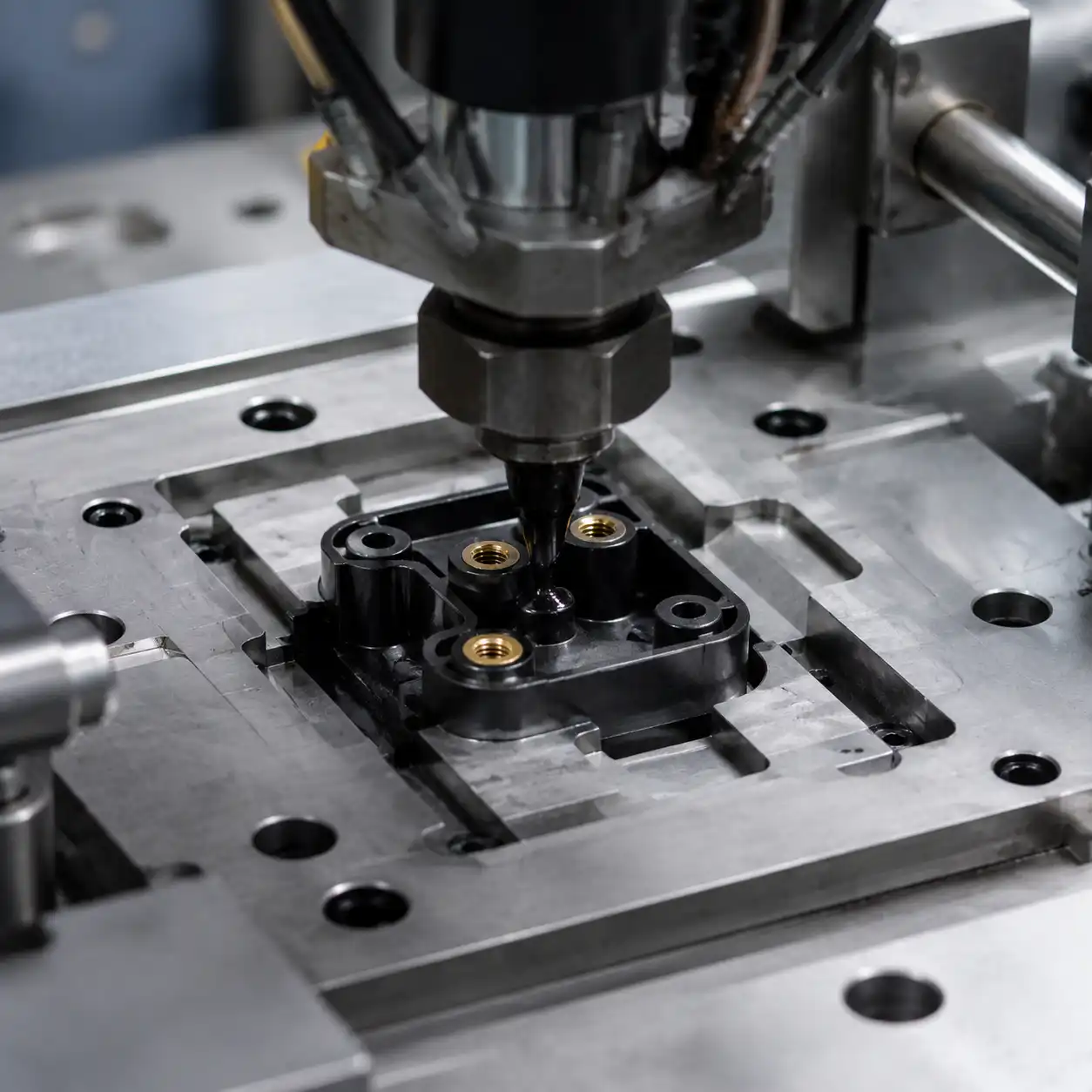

Insert molding combines the structural integrity of metal with the design freedom of engineering plastics in a single, cycle-efficient process. Instead of assembling threaded inserts, bushings, or electrical contacts after molding, the metal component is placed into the mold cavity and encapsulated during injection—eliminating secondary operations, reducing assembly labor, and creating a bond that is both mechanical and sometimes chemical.
Getting insert molding right requires navigating a narrow window where insert temperature, plastic shrinkage rate, and part geometry all converge without cracking the plastic or weakening the bond.

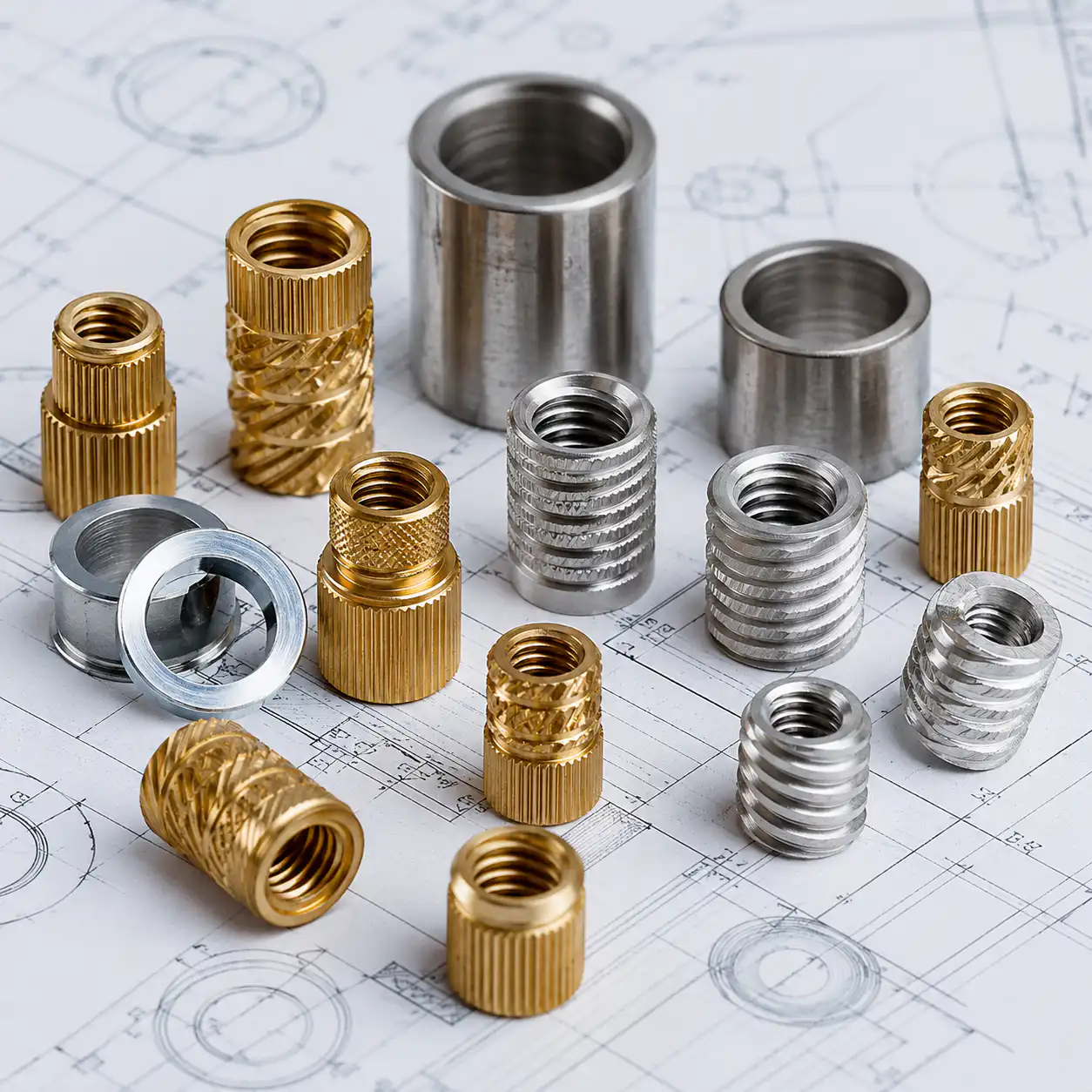

Insert Material Selection: Metals and Beyond
The most commonly insert-molded metals are brass (C36000) for threaded applications, stainless steel (303/304) for corrosion resistance, and carbon steel for cost-sensitive structural inserts. Each presents different thermal expansion matching challenges.
| Insert Material | CTE (×10⁻⁶/°C) | Best Plastic Pairing | Application Notes |
|---|---|---|---|
| Brass C36000 | 20.5 | PA66, PBT, PPS | Best CTE match with glass-filled nylons. Excellent for threaded inserts up to M12. |
| Stainless 304 | 17.3 | PPE, PPS, LCP | Lower CTE—needs plastic with similar shrinkage to avoid residual stress gaps. |
| Carbon Steel | 12.0 | PP, TPE overmold | Large CTE gap—use flexible polymers or design compliance features. |
| Aluminum 6061 | 23.6 | PA6, PC/ABS | Good CTE match. Lightweight. Knurled surface improves mechanical lock. |

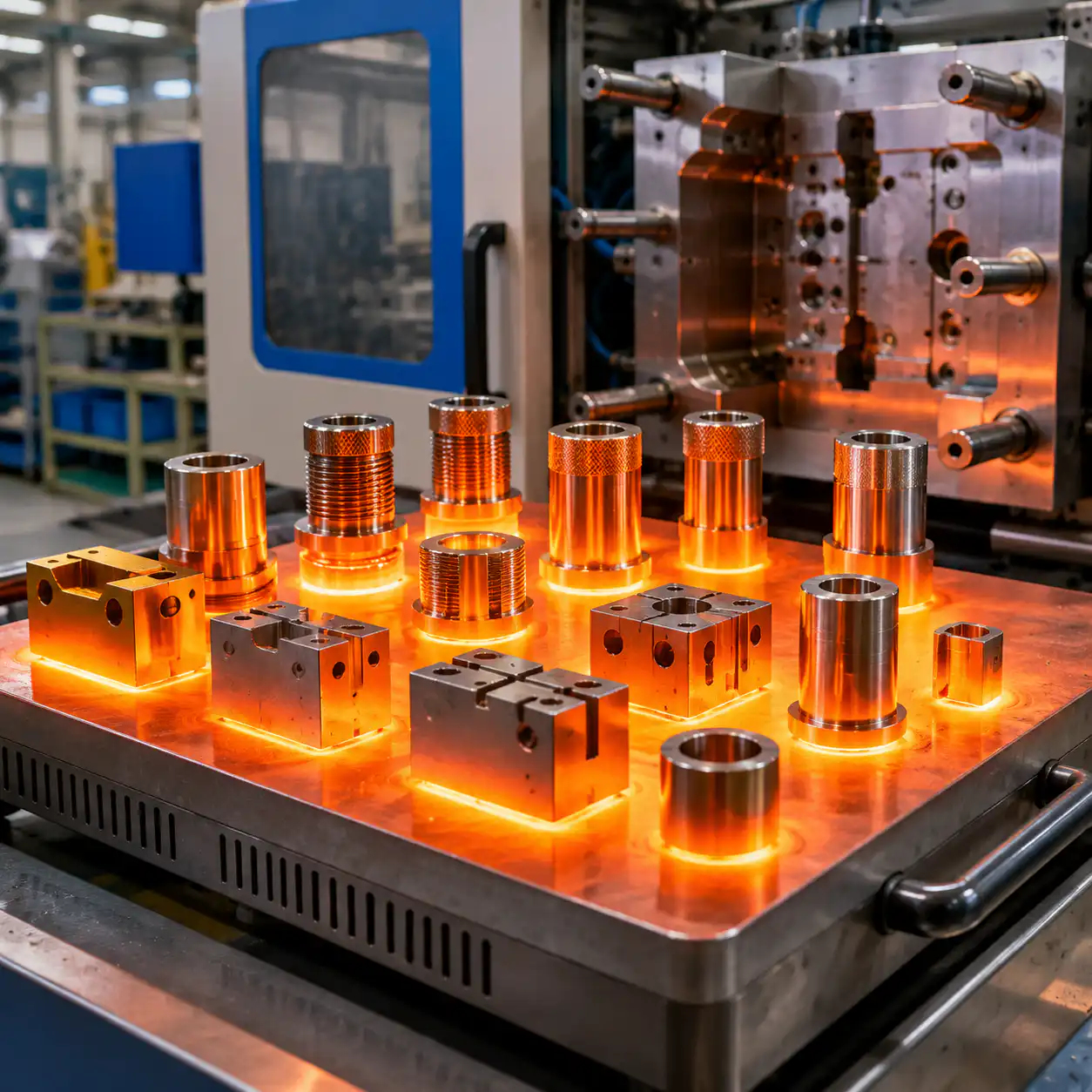

Insert Preheating: The Step Most Skip
A cold metal insert at 25°C dropped into a mold at 80°C and hit with 280°C melt creates a thermal shock gradient generating residual stress exceeding 30 MPa at the plastic-metal interface. Preheating inserts to within 10-20°C of mold temperature reduces this stress by 60-70% and dramatically lowers post-mold cracking risk.
For production above 5,000 pieces, an induction preheating station can heat inserts to 80-120°C in 3-5 seconds—fast enough to match cycle times. For prototype work, a simple hot plate or oven preheat is sufficient.

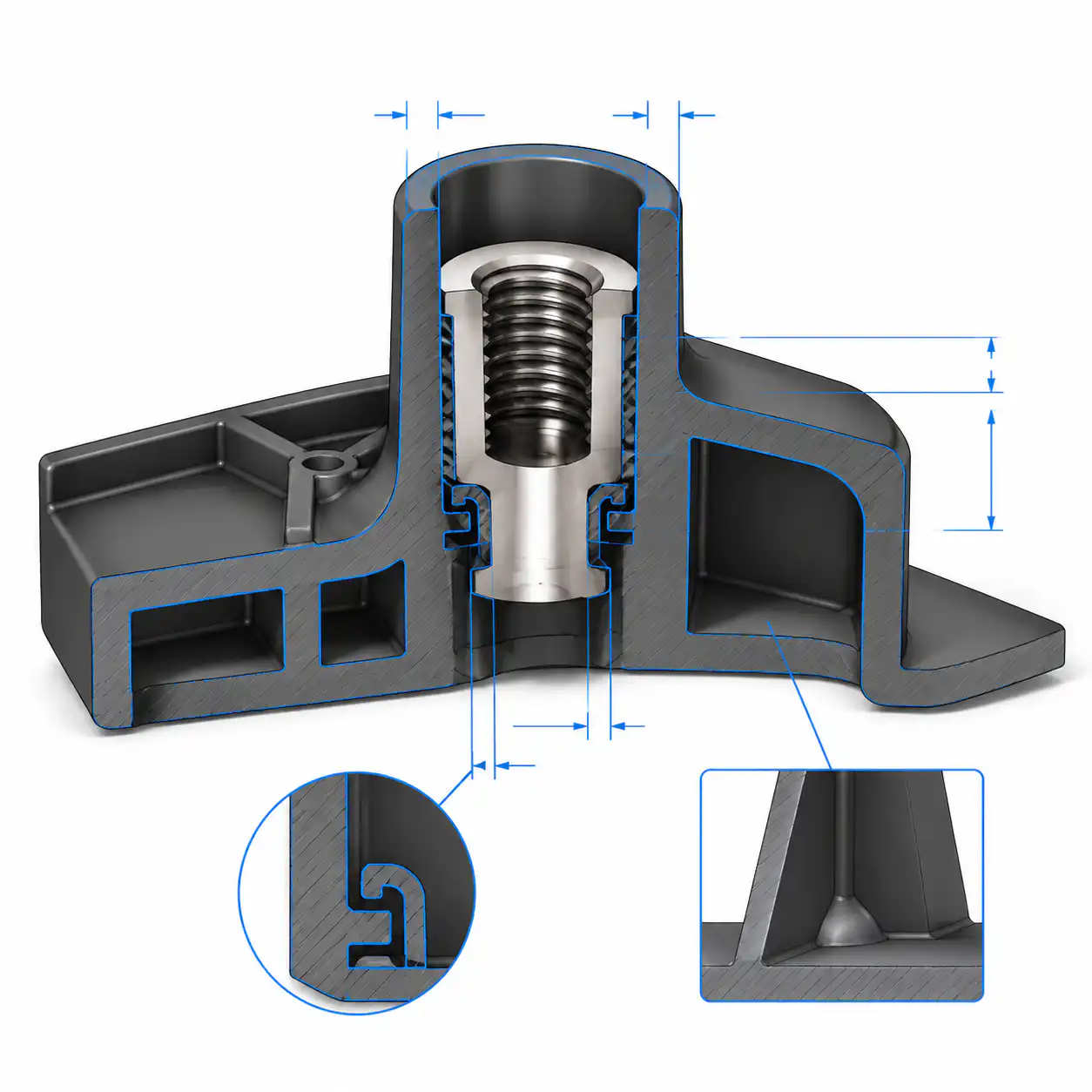

Design Rules for Insert Molding
- Plastic wall around insert: Minimum 1.5× insert diameter for PA and PBT; 2× for PP and unfilled materials. Below this ratio, hoop stress from differential shrinkage cracks the plastic within 24-72 hours.
- Knurl pattern: Diamond or straight knurl with 0.3-0.5 mm depth. Diamond knurl provides 30-50% higher pull-out strength than straight knurl under torsional load.
- Insert shoulder/undercut: A 0.5-1.0 mm shoulder or groove prevents axial pull-out. For inserts under 10 mm diameter, a simple groove suffices; above 10 mm, use both shoulder and knurl.
- Flow direction: Position insert so melt flows around both sides, not directly against one face. Direct impingement can shift the insert 0.1-0.3 mm before the plastic solidifies.
- Venting: Add 0.02-0.05 mm deep vents in the cavity near the insert to prevent gas traps. Trapped air around inserts is the #1 cause of surface defects.
- Thread protection: Internal threads on inserts must be protected from flash. Use a retractable core pin or external thread protection sleeve that seats tight against the insert face.
Industry Application Matrix
| Industry | Typical Parts | Insert → Plastic | Selection Rationale |
|---|---|---|---|
| Automotive | Sensor housings, ECU brackets, throttle flanges | Brass → PA66 GF30 | Wide temp range (-40 to 140°C) demands close CTE matching |
| Consumer Electronics | Laptop hinges, phone mid-frames, connectors | SS 304 → PC/ABS | Thin-wall (0.6-1.0 mm), high cosmetic requirements |
| Medical Devices | Surgical handles, pump components, luer connectors | SS 316L → PEEK | Autoclavable, biocompatible; withstands 134°C steam cycles |
| Industrial Equipment | Bearing housings, gear inserts, valve bodies | Brass → PA6+PTFE | Self-lubricating plastic reduces wear on brass bearing surface |
Cost Decision Framework
Insert molding’s primary advantage is eliminating post-mold assembly steps. A typical threaded insert assembly costs $0.08-0.25 per insert in labor—costs absorbed into cycle time (adding 3-8 sec for manual loading; 1-2 sec for automated).

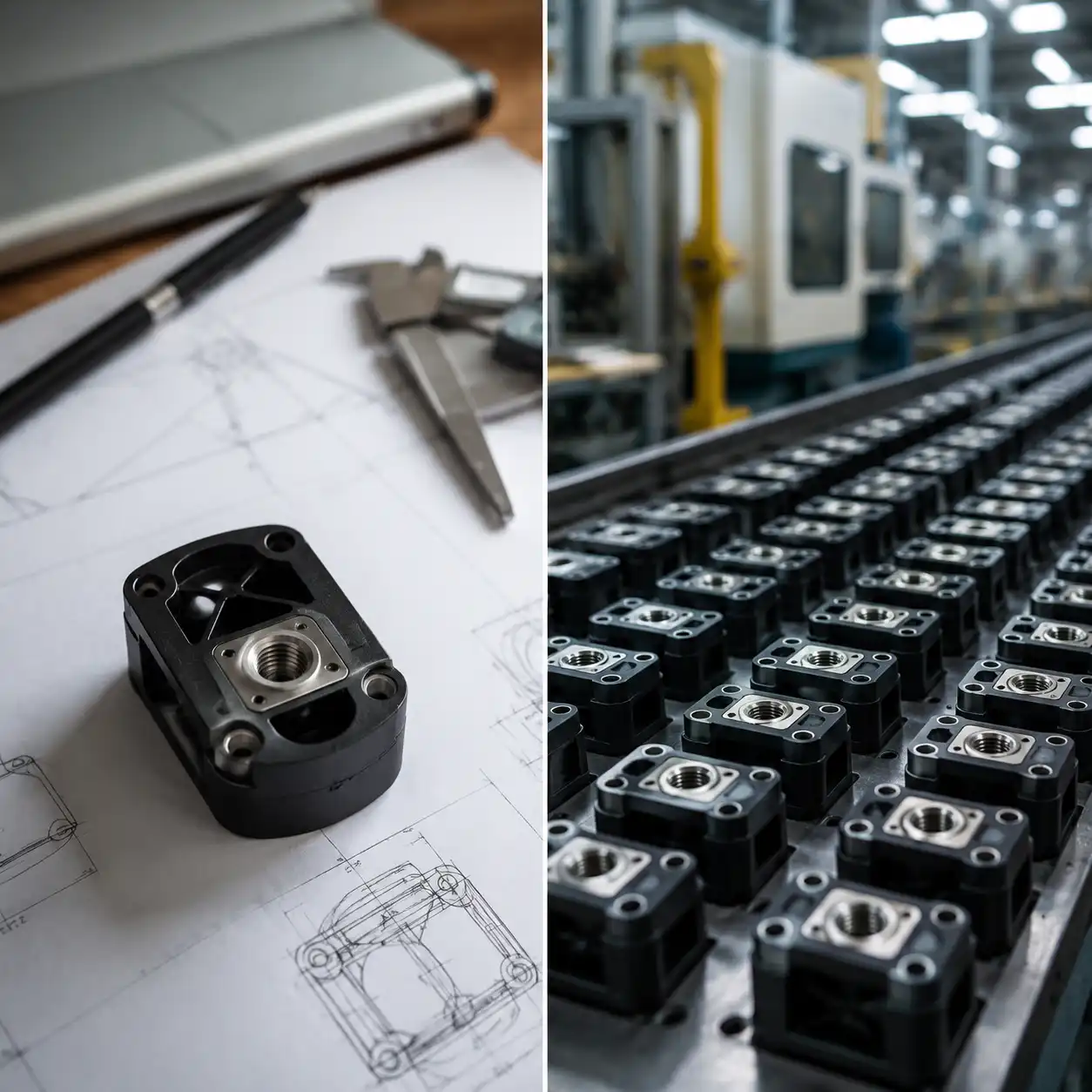

For volumes below 2,000 pcs, manual insert loading makes economic sense. At 5,000-50,000 pcs, a pick-and-place automation (~$8,000-15,000) breaks even in 12-18 months. Above 50,000, fully automated feeding achieves costs competitive with heat-staking while delivering a stronger joint.
Caveat: Insert molding tooling costs 20-40% more than standard molds due to insert locating features, venting, and robot access clearance.
Common Defects and Solutions
| Defect | Appearance | Root Cause | Solution |
|---|---|---|---|
| Post-mold cracking | Radial cracks around insert within hours | Plastic wall too thin; differential CTE stress | Increase wall to ≥1.5× insert diameter; preheat insert to mold temp |
| Insert shift | Insert 0.1-0.5 mm offset from centerline | Melt flow impingement moves insert during fill | Redesign gate to fill around insert; add 0.02 mm locating pin |
| Flash in threads | Plastic flash blocking internal threads | Clearance gap between core pin and insert face | Use spring-loaded protection pin; verify pin-to-insert face seating |
| Insufficient bond strength | Insert spins or pulls out under rated torque | Inadequate knurl depth or plastic shrinkage | Deepen knurl to 0.4-0.5 mm; diamond pattern; consider bonding primer |
Why Choose Nylon Plastic for Your Project
Precision Manufacturing
30+ CNC & injection molding cells under one roof
ISO 9001:2015
Certified quality system, full inspection reports
15-25 Day Lead Time
Fast turnaround with expedited options available
Global Shipping
Air & sea freight to North America, Europe, Asia
Download Our Insert Molding Design Guide
Free PDF reference guide covering material selection tables, design rules, and supplier evaluation checklists.
Related Articles
Frequently Asked Questions
What is the minimum wall thickness around a metal insert?
For engineering plastics like PA6, PA66, and PBT, the minimum plastic wall should be 1.5 times the insert diameter. For softer materials like PP or unfilled PE, increase to 2.0 times. Below these ratios, thermal shrinkage stress will crack the plastic within 24-72 hours of molding.
Does the metal insert need to be preheated before molding?
Yes, preheating is strongly recommended for any insert larger than 5 mm diameter. Preheating to within 10-20°C of the mold temperature reduces interfacial thermal stress by 60-70%. For high-volume production, induction heating can achieve this in 3-5 seconds per insert.
What knurl pattern provides the best pull-out strength?
A diamond knurl pattern with 0.3-0.5 mm depth provides 30-50% higher pull-out and torsional strength compared to a straight knurl. For small inserts (under 6 mm diameter), a simple circumferential groove of 0.2-0.3 mm depth can be sufficient.
How does insert molding compare to heat staking or ultrasonic insertion?
Insert molding provides the strongest bond because the plastic encapsulates the insert during its molten state, filling all knurl features completely. Heat staking and ultrasonic insertion typically achieve 60-80% of insert molding’s bond strength. However, insert molding requires more expensive tooling—choose it for high-volume production where the reliability gain justifies the mold cost.
